The Filter Is Not the Proof

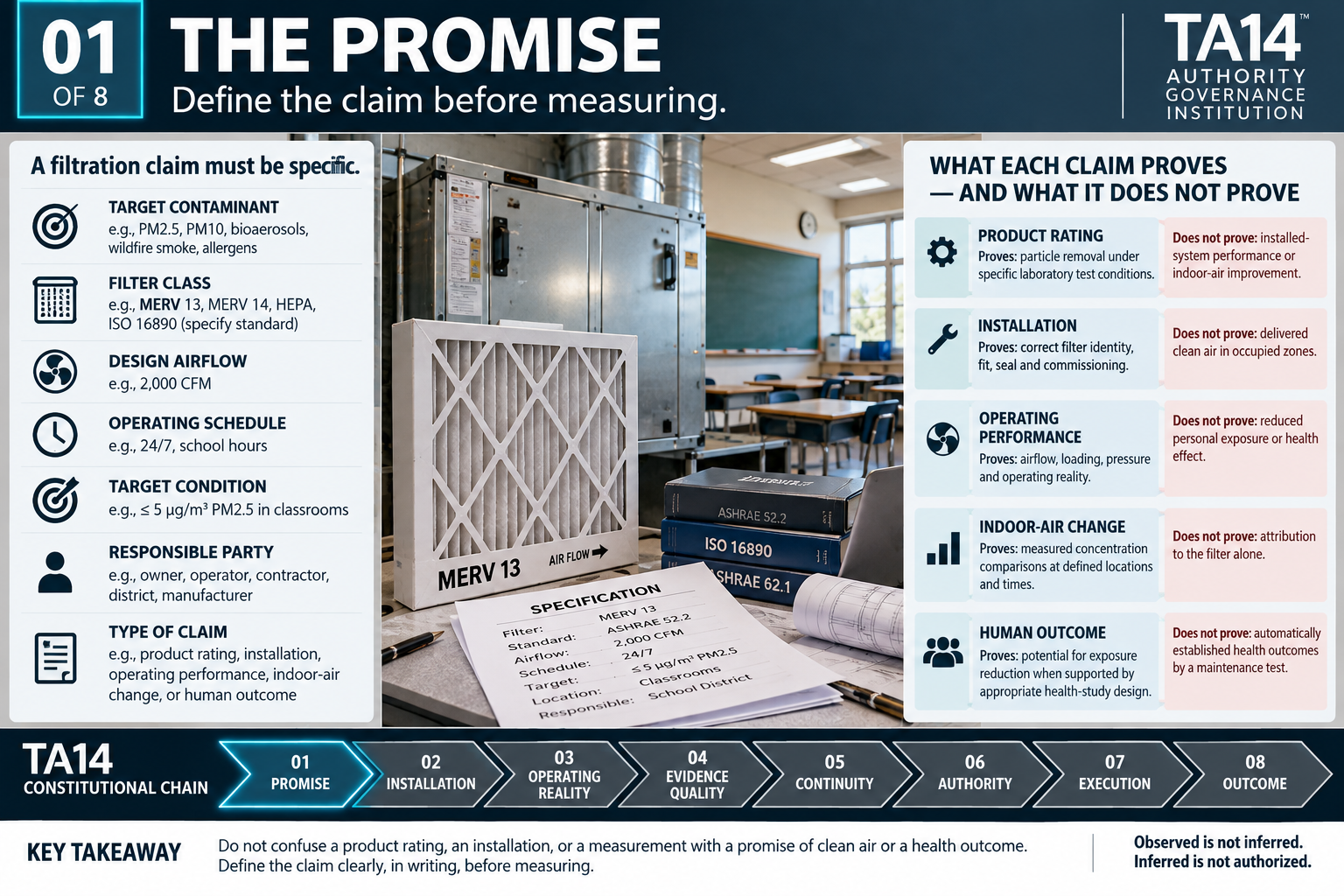

IMAGE 01 OF 08

THE PROMISE

Image one, the promise. Start with the exact claim: which contaminants, which spaces, what filter classification, airflow, duty cycle and measurable acceptance criteria? A laboratory rating describes a tested product under specified conditions, not the actual performance of an installed system. Preserve the claim and its boundaries before selecting measurements. An attractive performance label is not admissible proof of cleaner occupied air.

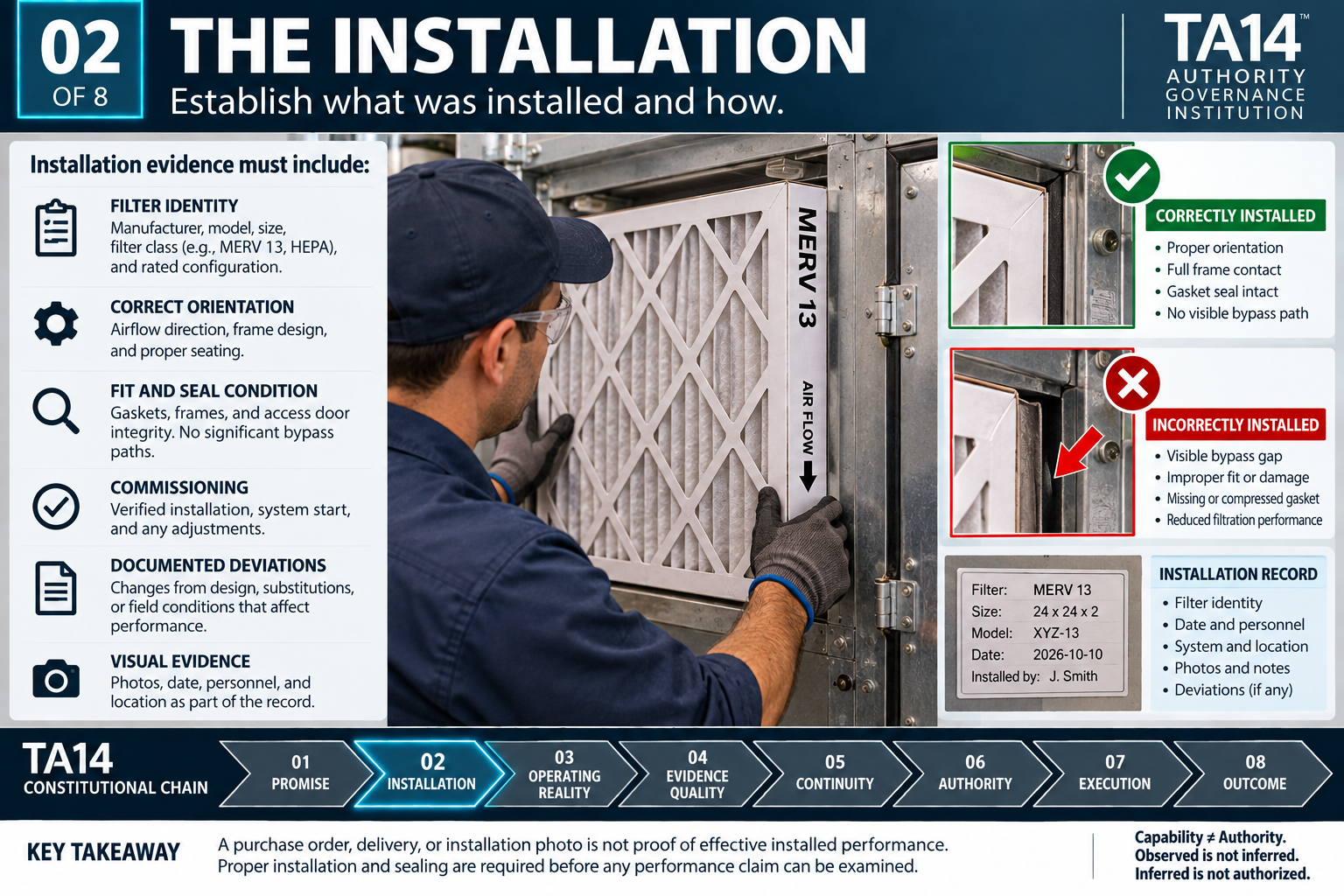

IMAGE 02 OF 08

THE INSTALLATION

Image two, the installation. Confirm the actual filter model, dimensions, airflow orientation, frame seating, gasket condition and potential bypass. Check installation and commissioning records, including deviations and who performed the work. A filter can meet a product specification and still perform poorly when air passes around it. Installation must be observed and documented, not assumed from procurement or completion.

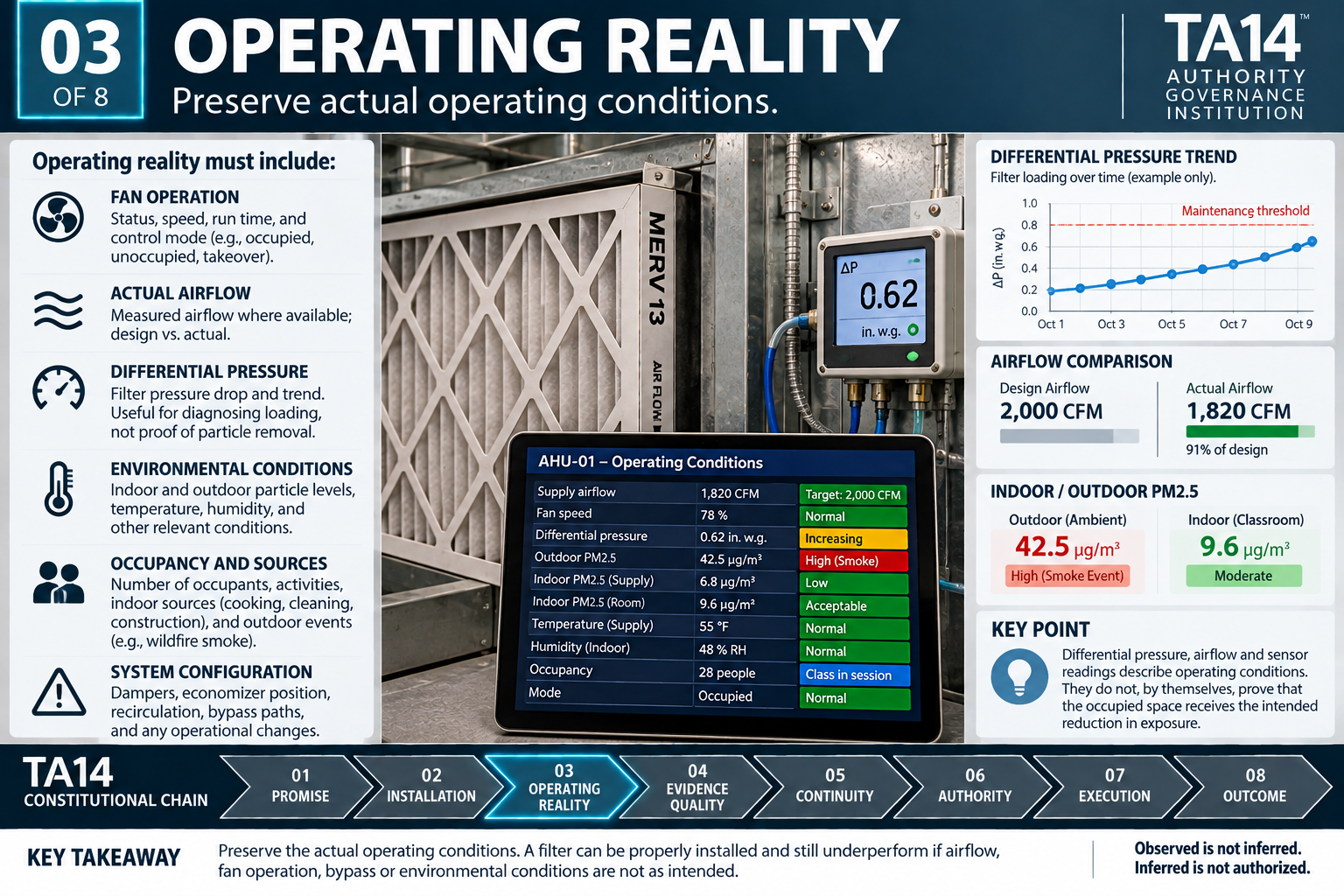

IMAGE 03 OF 08

OPERATING REALITY

Image three, operating reality. Capture the actual system state, fan operation, airflow, pressure differential, occupancy, ventilation schedule and indoor and outdoor environmental conditions. Record when and where readings were taken. Pressure drop alone does not establish filtration efficiency or occupant exposure. Conditions can change during operation, so one snapshot may not represent the relevant time period.

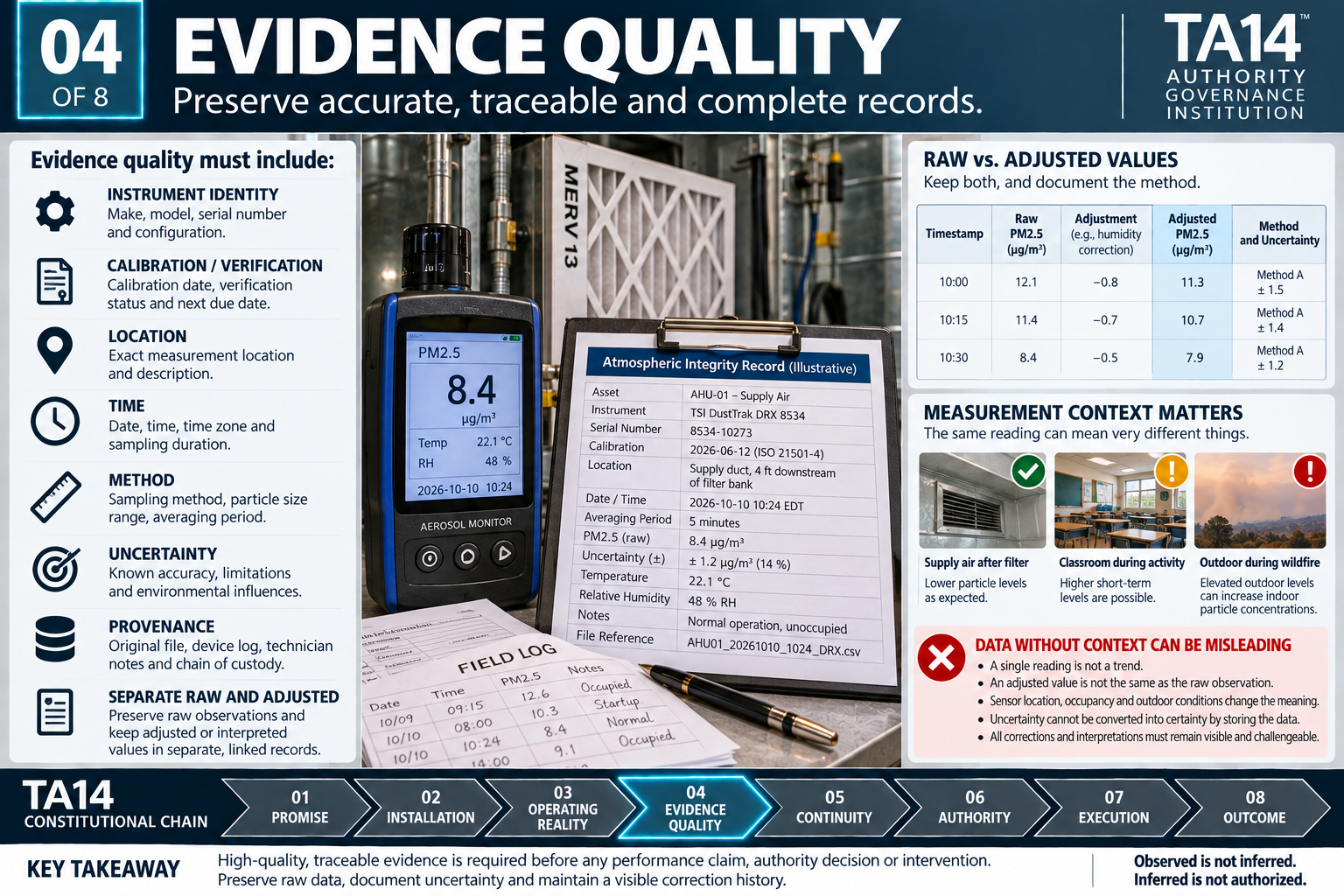

IMAGE 04 OF 08

EVIDENCE QUALITY

Image four, evidence quality. Preserve the original sensor readings, instrument identity, sampling method, calibration or verification status, timestamps, units, locations and known uncertainty. Keep raw observations separate from adjusted or normalized values. Record every correction with a method and provenance. If an instrument is unreliable or the sample is not representative, hold the conclusion until the evidence is sufficient for the proposed use.

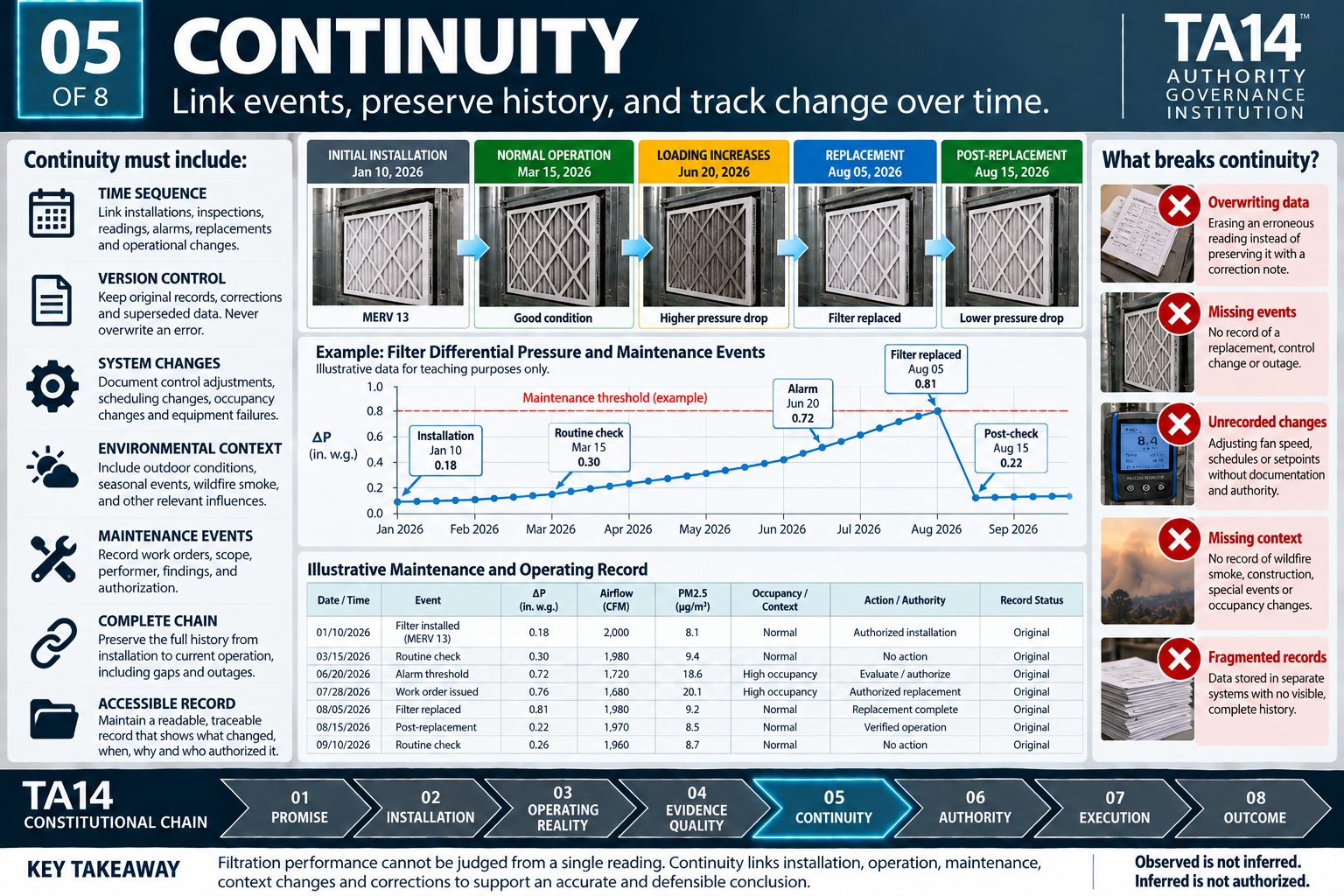

IMAGE 05 OF 08

CONTINUITY

Image five, continuity. Connect the original promise, installation, operating history, inspections, filter changes, sensor readings, alarms, maintenance and subsequent changes into a traceable chronology. Retain superseded records, explain gaps and preserve version history. A new reading does not erase what happened before. The goal is to let an independent examiner reconstruct the condition that existed when a consequential decision was made.

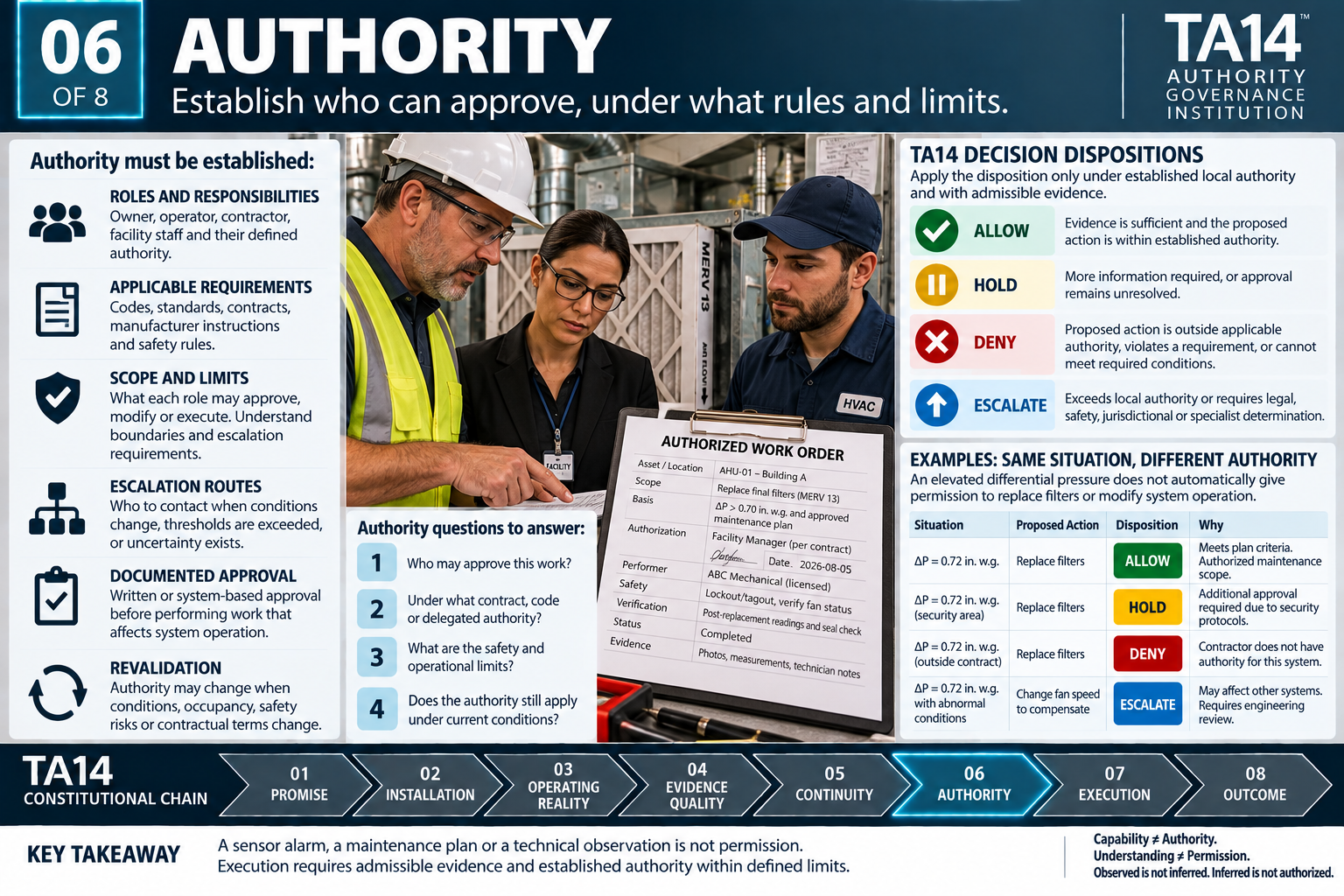

IMAGE 06 OF 08

AUTHORITY

Image six, authority. Evidence may support a proposed intervention, but evidence is not permission. Identify the asset owner, responsible operator, qualified contractor, applicable requirements, delegation, scope, time limits and affected people. Ask whether admissible evidence, applicable authority and established standing exist now. Record a bounded decision: allow, hold, deny or escalate. An authorized installation in the past does not authorize every future change.

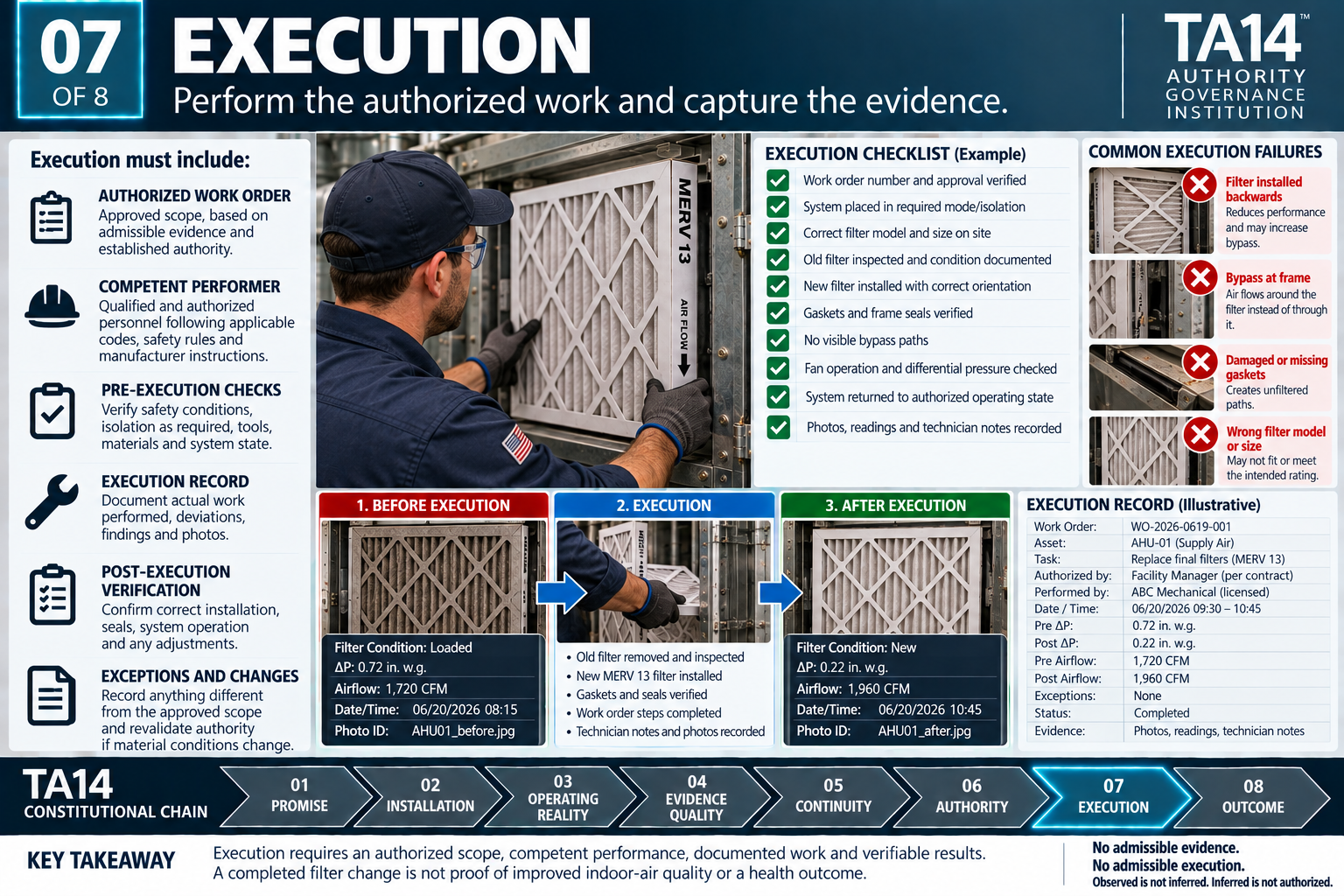

IMAGE 07 OF 08

EXECUTION

Image seven, execution. Compare the approved work order with what was actually performed. Confirm competent personnel, required safety and isolation checks, filter model, orientation, seals, documented exceptions and before and after operating state. Preserve photographs, measurements, timestamps and technician notes. If conditions or scope materially change, revalidate the authorization. An approved work order is not proof that the work occurred or succeeded.

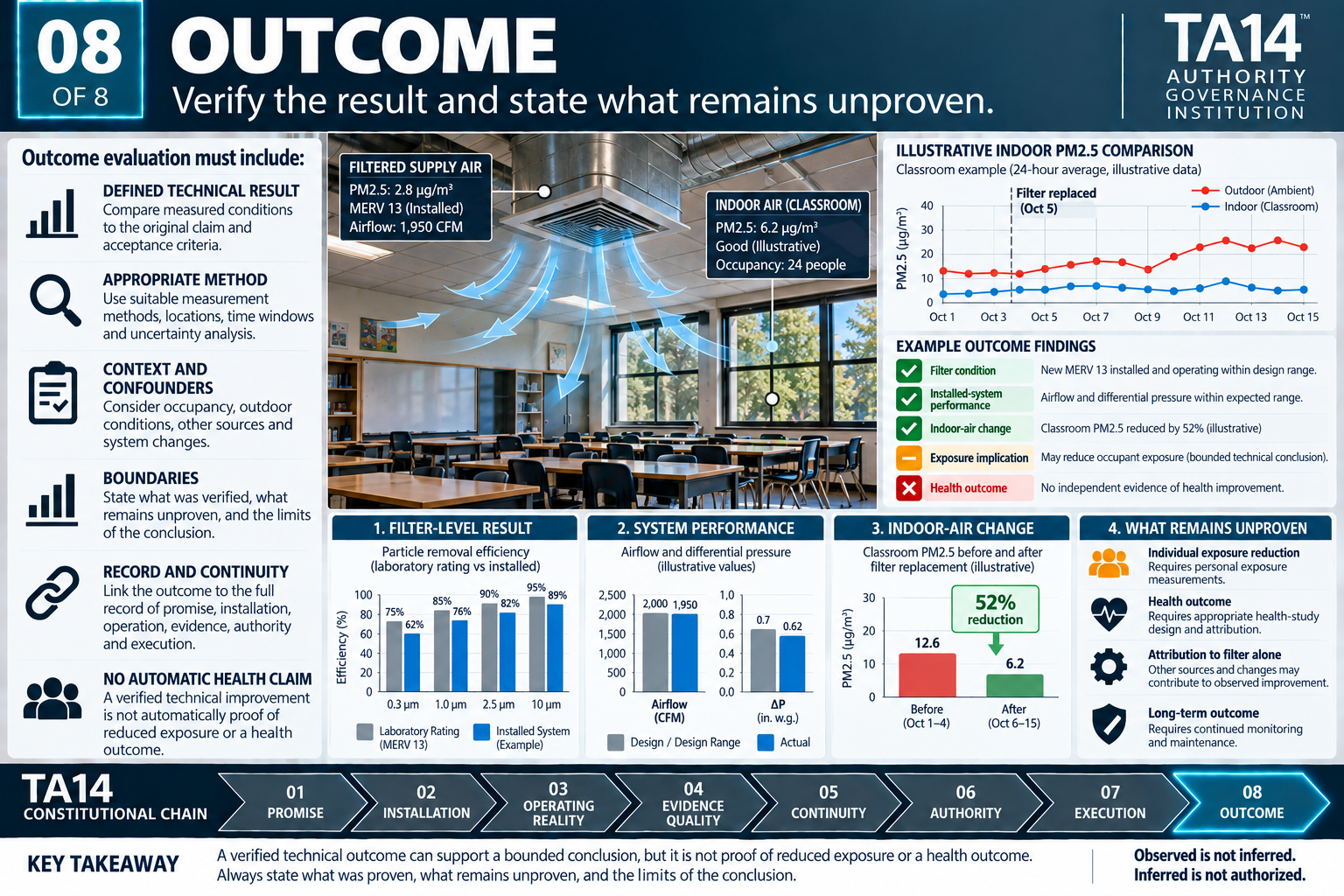

IMAGE 08 OF 08

OUTCOME

Image eight, outcome. Verify the actual technical result against the previously defined criteria, using appropriate comparison periods, measurements and uncertainty. Separate filter condition and system performance from indoor air changes. An observed reduction in particulate concentration does not, by itself, establish a reduction in an individual's exposure or a health improvement; other sources and changing conditions may contribute. State what was proven, what remains unproven and what continued monitoring is needed.

INTERACTIVE EDUCATIONAL PRESSURE TEST

Can This Building Claim Cleaner Air?

Hypothetical school filtration scenario. Select which conditions have been established. These selections are illustrative assertions, not verified evidence.

Illustrative AIR evidence packet

A defensible examination would preserve the asset and filter identity; original installation and maintenance records; timestamped operating conditions; instrument identity, calibration status and uncertainty; raw and adjusted readings separately; record continuity and revisions; authority and standing; execution evidence; and bounded outcome verification.

Observed is not inferred. Inferred is not authorized.

From evidence to authorized consequence

TA14 examines admissibility, applicable authority and established standing before a proposed consequence. Possible dispositions are ALLOW, HOLD, DENY or ESCALATE. A filter rating, an observation or an approved work order alone does not authorize execution or establish success.
